Issue with PDU1 frame addressing

Mark Bevington 3 weeks ago in IQANdesign • updated by Thomas Moberg (System support) 3 weeks ago • 2

I'm trying to configure a encoder at SA=0x20. I'm having an issue implementing a J1939-21 CMDT exchange in IQAN. As part of the

configuration handshake the encoder sends a CTS (Clear To Send) frame to  me (SA=0x01) to let me know that it is ready to receive

the new encoder configuration data. IQAN will NOT let me set the address of this frame as required. I've been able to configure the

encoder, as needed, but only if I skip receiving the CTS frame. I did note that I'm able to set the address for 60416 to SA=0x20, as required by the RTS (Request To Send) frame, so it seems

the the PDU1 handler (inside IQAN firmware) is partially working. Just not when the DA is set to 0x01.

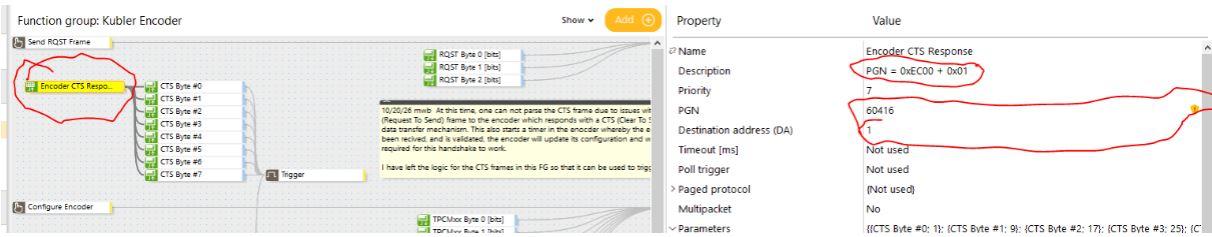

Image 5522

Here is a screen snip from a logfile showing a successful configuration, using my IQAN test app, even though IQAN is not able to receive the CTS frame (encircled in RED).

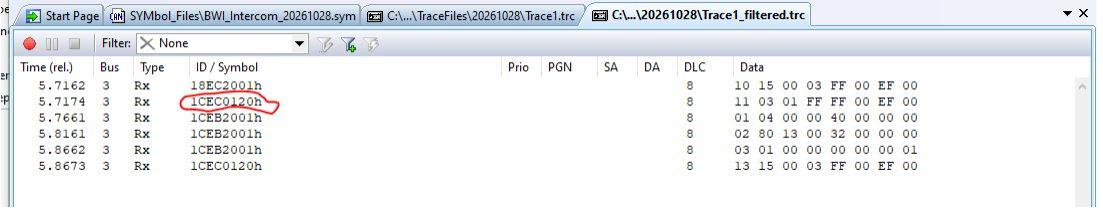

Image 5523

Here is a more detailed info and a view of the configuration handshake acquired using Vector CANoe.

The configuration data is - as specified in document SAE J1939/21 – transmitted via J1939 CMDT transfer. A configuration is in principle possible also without J1939 stack or tool.
The transmission via EncoderSetup PG with listing of the raw frames on the bus starts atmoment 24.920140 and is concluded at moment 24.923872.
To this purpose, you must sent the frames marked with Dir: "Tx" (RTS and Sequence 1-3) andyou receive as an answer the two frames marked with "Rx" (CTS and EoMA).
After the configuration, how the encoder starts sending measured data can be seen as from moment 24.941659 ("EncoderPositionSpeedValues"

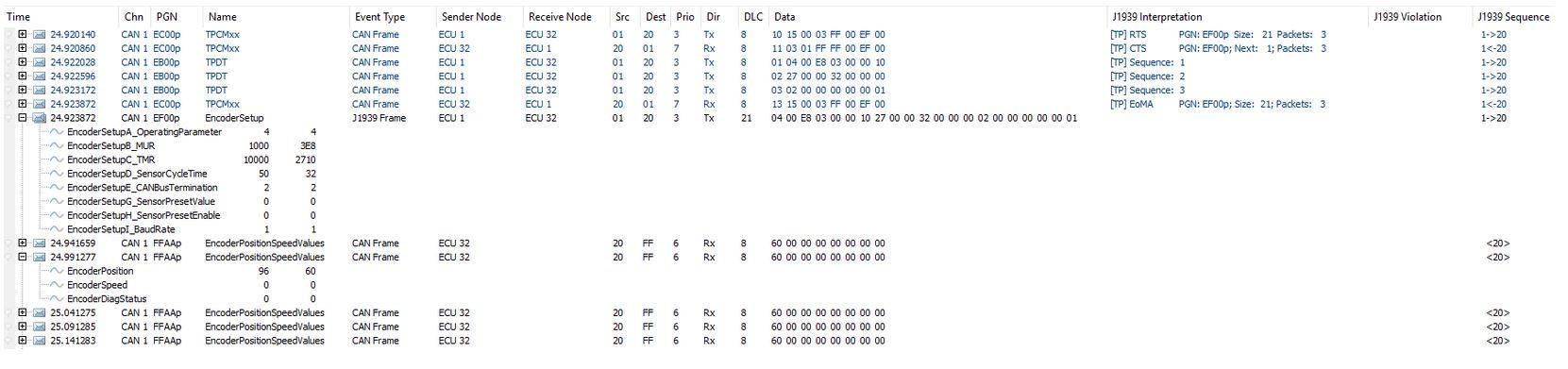

Image 5524

I have a fully functional test app built with IQANdesign 6.08.32 using a MD4-5 but can't attach it to this post as it's 6 mB over the 20 Mb limit.  It doesn't work when built with IQANdesign7.05 either

I'm open to any, and all suggestions.

Thanks,

Mark

+1

Hello Mark.

The reason for the "invalid identifier" is that 60416 is the BAM message part of the multipacket message in the standard.

But it should still work to read that PGN , it will just prevent the use multipacket message if used.

I set up a test here where i send this message out on the CAN bus and read it with your application.

Image 5531

As you can see here i am able to get the message in to my MD4 without issue.

Image 5532

Are you able to read any other messages from the encoder.

If not i would start by checking the CAN connections to see if everything is OK.

Is this a multipacket message you are trying to read?

If so, you do have an option on the JFIN channel for multpacket message that you can use to just read the data instead of setting it up yourself.
