+1

IQANrun 4.00 released

Gustav Widén (System support) 10 years ago in IQANrun updated 9 years ago 3

Highlighted features

New connection type: IQANconnect

A new way to connect remotely via Internet where you pay per connection. The IQANconnect service is available for beta testing, more information will follow.


Image 253


Component navigator

The component navigator from IQANdesign is now available also in IQANrun. Use Ctrl-J for quick access.


Image 252


Compatibility

IQANrun 4.00 is fully compatible with version 3. It can be used for all operations such as adjust or accessing logs in version 3 system. IQAN Active Studio version 4 includes the IQANrun 2 setup file for use with older systems, and IQANrun 4 will give the option to automatically launch version 2 if connected to a system running that version.

0

Error "No master module found"

Mark789 1 hour ago in IQANrun 0

Hello!

I'm trying to connect with MC4x controllers through IQANrun 6 and a PCAN dongle but I'm already stuck at the home screen. After I start IQANrun and select the correct communication interface (CAN), press Connect, I get this "No master module found" error.

Image 4842

  • I made sure to connect the dongle before starting IQANrun
  • The program seems to recognize my dongle:  Image 4843
  • When I hover over it, I see this: Image 4847
  • The LED on my dongle burns continuously
  • I've got a working license for IQANrun
  • It doesn't matter if I change communication device settings to "first available"Image 4846
  • IQANanalyze works fine: Image 4844

Any ideas?

Thank you!

Mark

0

IQAN Run 7.04.9.7413

Jamy 2 weeks ago in IQANrun 0

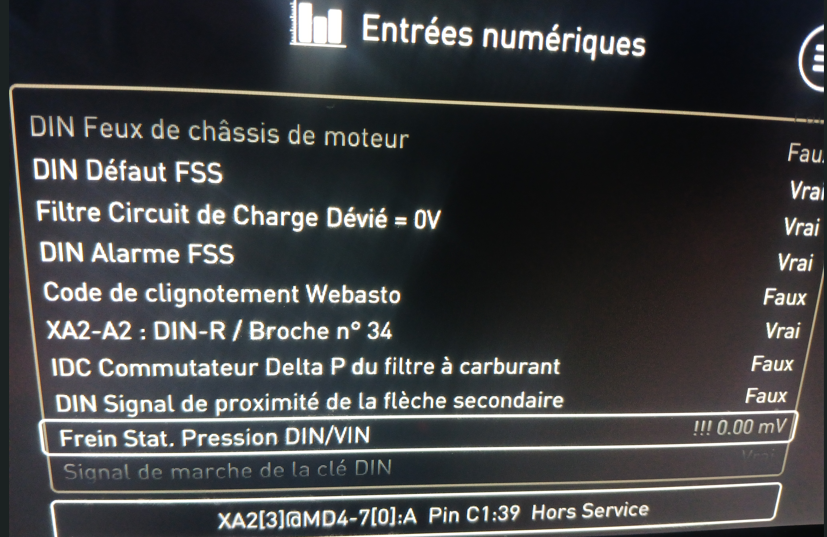

When calibrating the minimum and maximum settings of proportional solenoids, the millivolt (mV) value shown in the reference items may occasionally freeze, resulting in a misleading reading. I’ve found that exiting and then re-entering the adjust group refreshes the reference value and resolves the issue.

0

Remaining download displayed

Kevin 2 weeks ago in IQANrun 0

I wonder sometimes how long a download will take and the progress bar can sometimes be a bit misleading.

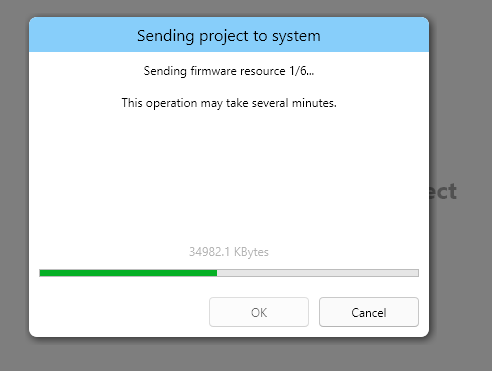

Can we have the total kb to be sent displayed alongside the kb already sent? This will make it easier to judge how much longer it will take. When downloading through Bluetooth it would be nice to know if it was likely to be one hour or five! This image is in Run, but maybe could be ported across to Design as well?

Image 4823

0
Fixed

Measure Group - Can't Save or Auto Scale

Jason H 4 weeks ago in IQANrun updated by Ulrik Zakariasson (Software development) 4 weeks ago 2

When using IQAN Run 7 with saved .irmx files, I can't use the right-click menu for anything: saving, auto scaling, or commenting.  Is there a reason these feature would be locked out?

0
Fixed

IQAN Run 7.04 unable to scale values of a saved measurement

Mats 1 month ago in IQANrun updated by Ulrik Zakariasson (Software development) 1 month ago 1

When a saved file is opened in IQAN Run 7.04 I can not open the "hamburger menu" button. So I am not able to save or scale values or copy any values. Could this be a bug in the SW or anything to do with my laptop?

0
Not reproducible

MD5 crash

Kevin 2 months ago in IQANrun updated by Gustav Widén (System support) 1 month ago 3

Noticed a few times our screen appears to crash out when attempting to connect using IQAN Run via G12 modem. Its not reliably repeatable. Below image is shown on the screen when it crashes out. We have noticed we are using Run version 7.03, could this be why? There does not seem to be any errors when attempting to connect, most of the time it seems to work fine. System has MD5-8 with MC43FS and G12.

Image 4772

IQAN Design 7.04.8.10088

IQAN Run 7.03.30.7315

0

csv file for parameters

chuck streb 3 months ago in IQANrun 0

could we get a csv files for all parameters?  I would like this as an output so we can quickly check with software that all parameters are correct. a quick check in the field before techs leave a site !

0

Feild Upgrades !

chuck streb 5 months ago in IQANrun updated by Anders Olsson 4 months ago 7

I am circling back with this subject ! Even with IQANGO and IQANRUN, I am not confident I will not crash when remoting in for an upgrade. Out of 4 field upgrades, I have had 2 failed attempts. That's not a great record. 1 of those attempts when i started over actually recovered.  WE NEED A SECURE WAY OF UPDATING MACHINES. I would love to send a dongle that plugs into a USB port. We have over 65 machines in the field , it is cost prohibitive to go out into the field and update. Please , Please, Please think of a way to do this !  down load the entire program first, checksum it with a hash function, then install. Something.

Thanks

Chuck
